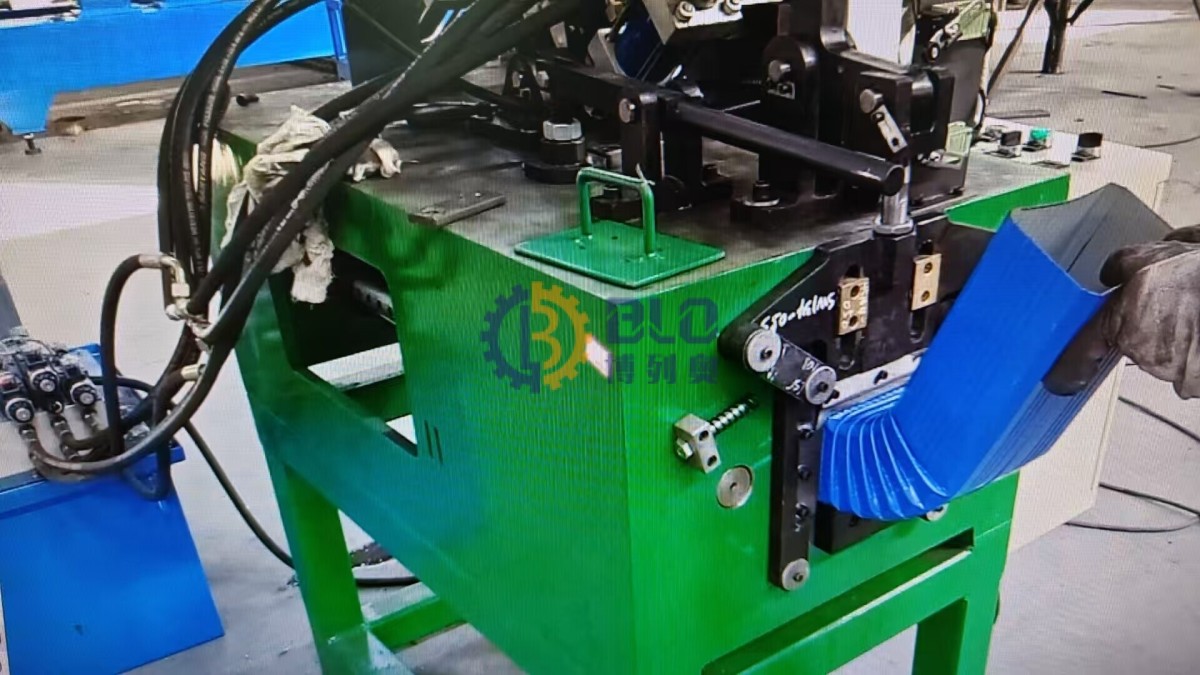

An individual downpipe shrinking and bending machine is a specialized piece of equipment used in the fabrication of rainwater drainage systems, specifically for forming bends (elbows) and reducing (shrinking) the ends of metal downpipes. These machines are typically used alongside downpipe roll forming machines to complete the shaping process of square or round pipes.

Key Features:

Shrinking Function – Compresses one end of the downpipe to allow easy interlocking during installation.

Bending Function – Creates precise bends (typically at 72° or 85°) to form elbows for water flow redirection.

Material Compatibility – Works with galvanized steel, painted steel, aluminum, or similar materials.

Automation – Most machines operate automatically, offering consistent and high-speed output

Standalone Use – These machines can function independently or as part of an integrated production line.

Applications:

Used by gutter/downspout manufacturers.

Common in building construction for forming roof drainage components.

These machines greatly reduce manual labor, ensure uniform quality, and increase production efficiency.

Operation Steps of  Individual Downpipe Shrinking and Bending Machine

Pipe Insertion:

The operator manually places a cut section of downpipe (usually from a roll-forming line) into the machine.

Shrinking Function:

One end of the pipe is clamped and hydraulically or mechanically shrunk.

This process compresses the pipe end to a slightly smaller diameter, allowing it to fit into another pipe section for a secure connection.

Bending Function:

The pipe is repositioned to the bending section.

Using a mold or die, the machine bends the pipe (commonly to 72° or 85°) to form an elbow.

Bending can be done via manual operation or automated hydraulic control depending on the machine model.

Ejection and Repeat:

The finished pipe is released, and the next one is loaded for processing.

Maintenance Note:

Regular checks and lubrication are necessary for long-term operation .

This machine is user-friendly, requires minimal training, and is essential for customizing downpipe configurations on-site or in a factory setup.
