The Roof Ridge Tile Forming Machine is a specialized piece of equipment used in the continuous manufacturing of metal roof ridge tiles. These machines transform coiled metal sheets into precisely formed ridge caps through a series of automated processes. Below is a detailed breakdown of the typical work progress, synthesized from the various search results.

1. Material Loading and Uncoiling

• Process: The production begins with loading a large coil of metal (typically pre-painted galvanized steel (PPGI) or aluminum) onto a decoiler or uncoiler. This can be a hydraulic, motorized, or manual system, with capacities often ranging from 5 to 15 tons .

• Key Adjustment: Some decoilers feature manual expansion arms to accommodate different coil inner diameters (e.g., 508mm) and outer diameters (up to 1000mm) .

2. Material Feeding and Straightening (Optional)

• Process: The metal strip is fed from the decoiler into the forming machine. Optional components like a front shear might be used to trim the leading edge of the coil for a clean start. Some lines also include a filming covering device or lubricating device, though some machines operate without lubrication .

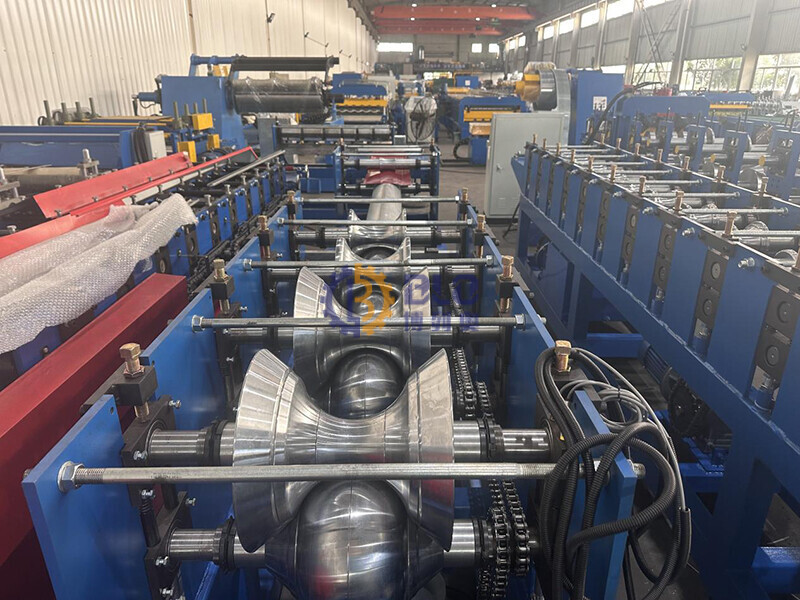

3. Roll Forming Process

Process: This is the core stage. The metal strip passes through a series of forming stations (typically between 13 to 25 pairs of rollers). Each station incrementally bends the metal into the desired Omega or ridge cap profile. The number of stations affects the quality and complexity of the final shape .

Key Components:

• Rollers: Made from durable materials like Cr12 or 45# steel, they are mounted on shafts (often 70-75mm diameter) made from quenched and tempered material like 40Cr .

• Drive System: Powered by a main motor (e.g., 4KW with a cycloidal reducer) using a chain and sprocket system to synchronize the rollers .

• Frame: Constructed from robust materials like 350H steel to ensure stability during forming .

4. Profile Cutting

• Process: Once the profile is formed, it is cut to the desired length. Two primary methods are mentioned:

• Post-cutting (Stop-to-Cut): The machine stops momentarily for a hydraulic cutter to make a clean, perpendicular cut. This method offers high precision, with tolerances as tight as ±2mm .

• Flying Cut (Uninterrupted Cutting): The cutting mechanism moves synchronously with the moving profile for a continuous cut without stopping the line, enhancing production speed .

• Cutting Blade: Typically made from Cr12 steel and quenched for durability and a clean cut .

5. Output and Stacking

• Process: The finished, cut ridge tiles are conveyed away from the main machine on an output table or run-out table . For higher automation, an automatic stacker (or stack master) collects and stacks the panels. Stacking can be longitudinal or lateral, as per requirements .

6. Control and Monitoring

• Process: The entire production line is governed by a Programmable Logic Controller (PLC) system (e.g., brands like Delta, Mitsubishi, or Siemens) .

• Control Features:An encoder measures the length of the material passed, signaling the PLC when to initiate cutting based on pre-set lengths .

A human-machine interface (HMI) or text screen allows operators to input parameters like production quantity, batch number, and piece length .The system often includes a variable frequency drive for smooth speed control of the entire line .

Conclusion

The work progress of a Roof Ridge Tile Forming Machine is a continuous, automated sequence from uncoiling raw metal to stacking the finished profiles. Precision is achieved through synchronized mechanical components—powerful rollers, hydraulic cutters, and robust frames—governed by a central PLC system. This allows for efficient, high-volume production of consistent roof ridge tiles with customizable dimensions .
