Steel Cut To Length Machine Line

A steel sheet cut to length machine is a specialized industrial machine used for processing metal coils by cutting them into specific lengths. These machines are essential in industries that require precise sheet metal cutting, such as automotive, construction, and manufacturing. The steel cut to length machine accurately cuts metal coils into predefined lengths, ensuring consistent quality for high-volume production.

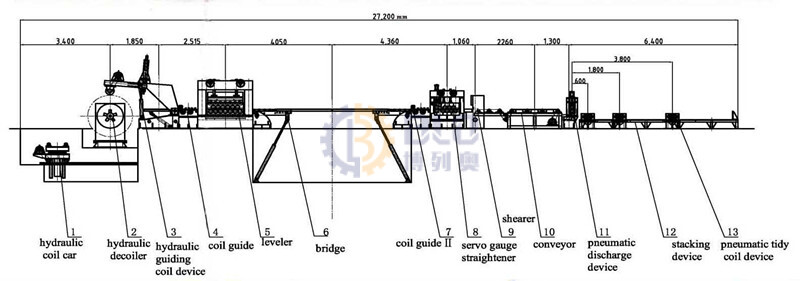

1
2

Cold Rolled Thin Plate Cut To Length Line

Cold Rolled Thin Plate Cut To Length Line include

a loading trolley → hydraulic decoiler → feeding device → traction leveling machine → transition bridge → deviation correction device → servo feeding → shearing machine → conveyor belt → blanking → palletizing.

The maximum shearing speed of this series of production lines can reach 120 times/minute, and it can protect the sheet material from being flat and scratched; the feeding is driven by a servo motor, with high shearing accuracy; double palletizing discharge is efficient and fast.

Good features of Cold Rolled Thin Plate Cut To Length Line

▶ The whole machine has a reasonable design structure, compact shape, high precision, high efficiency, and flexible and convenient adjustment.

▶ The frame is welded with steel plates, annealed, and processed by a CNC machining center to ensure high strength and high precision.

▶ The manufacturing process of the whole machine is strictly produced in accordance with the design specifications of the machine, and the leveling roller material is bearing steel GCr15.

▶ The working shaft support of the whole machine adopts heavy-duty bearings, with advanced lubrication system, and long service life.

▶ The whole line is controlled by PLC, and the touch screen displays and operates, with a high degree of automation.

▶ The electrical components are all selected from foreign high-end brands, and the mechanical accessories are well-known domestic brands.

Main Technical Parameters Of Cold Rolled Thin Plate Cut To Length Line

Material thickness 0.1-1.0mm 0.3-2.0mm 0.3-3.0 mm 0.5-4.0mm
Material width 300-1250 mm 300-1600 mm 300-1800 mm 300-1800 mm
Finished length 300-2000 mm 300-3000 mm 400-4000 mm 400-6000 mm
Length accuracy ±0.3 mm ±0.3 mm ±0.3 mm ±0.3 mm
Diagonal accuracy ±0.5 mm ±0.5 mm ±0.5 mm ±0.5 mm
Leveling accuracy <1 mm/m² <1 mm/m² <1.5 mm/m² <1.5 mm/m²
Line speed 90 m/min 80 m/min 75 m/min 70 m/min
Coil weight 10,15 ,20t 10,15 ,20t 10,15 ,25t 20,25,35 t

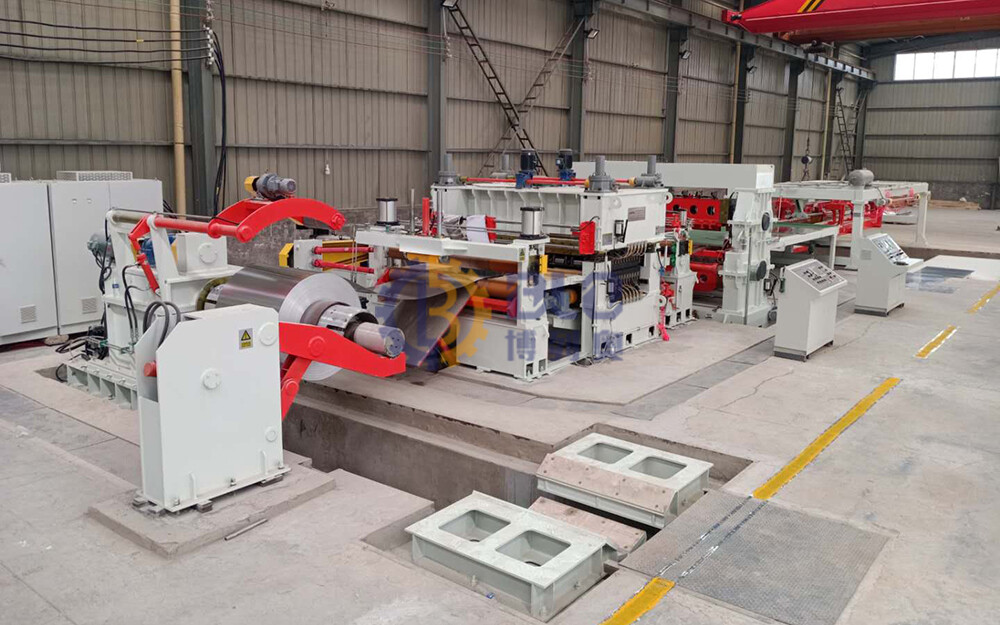

Thick Plate Cut To Length Line

Thick Plate Cut To Length Line include

Feeding line includes coil trolley, Uncoiler，Straightener , Loop Bridge, Fixed Length Measurement, Pile stacker, PLC controller.

Good features of Thick Plate Cut To Length Line

▶ Optional ordinary Lifting Stacking machine and fipping material machine.

▶ Optional dust collector,profitable customer’s special requirements.

▶ Highly reliable performance.

▶ High quality leveling and improvement of internal stress.

▶ Accurate fixed length and Neat stacking.

▶ Easy to operate: Humanized design, simple and convenient operation, easy maintenance.

▶ Friendly human-machine interface.

Main Technical Parameters Of Thick Plate Cut To Length Line

Material thickness 1.5-6.0 mm 2-8 mm 3-12 mm 4-16 mm 6-20/25 mm
Material width 800-2000 mm 800-2200 mm 800-2200 mm 800-2200 mm 800-2500 mm
Finished length 1000-6000 mm 1000-8000 mm 1000-12000 mm 2000-14000 mm 2000-14000 mm
Length accuracy ±1.0 mm ±1.0 mm ±1.0 mm ±1.0 mm ±1.0 mm
Diagonal accuracy ±1.0 mm ±1.0 mm ±1.5 mm ±1.5 mm ±1.5 mm
Leveling accuracy <1 mm/m² <1 mm/m² <1.5 mm/m² <1.5 mm/m² <1.5 mm/m²
Line speed 50 m/min 40 m/min 40 m/min 40 m/min 30 m/min
Coil weight 20,30 t 20,30 t 20,35 t 20,35 t 20,35 t
