Streamline your production of structural cover plates with SFM's high-speed, automated roll forming solutions. Achieve perfect consistency, reduce waste, and boost your ROI.

In the world of structural engineering, bridge construction, and heavy-duty fabrication, the cover plate is a critical component. Used to reinforce beams, girders, and other structural elements, these plates must be manufactured to exacting standards of dimensional accuracy and consistency. Traditional methods like manual cutting and welding are time-consuming, labor-intensive, and prone to human error.

There is a smarter, faster, and more profitable way: automated roll forming. SFM Machinery’s dedicated Cover Plate Roll Forming Machine is engineered to transform your production process, delivering unmatched precision and efficiency from coil to finished product.

The Challenge of Traditional Cover Plate Production

Manufacturing cover plates traditionally involves:

• Manual Handling: Moving heavy steel plates is inefficient and hazardous.

• Inconsistent Cutting: Plasma or flame cutting can lead to uneven edges, slag, and thermal distortion.

• Secondary Processing: Requiring additional steps for deburring and finishing.

• High Material Waste: Inefficient nesting on raw plates leads to significant scrap.

• Scalability Issues: Difficult and costly to ramp up production for large projects.

The SFM Solution: Automated Roll Forming Excellence

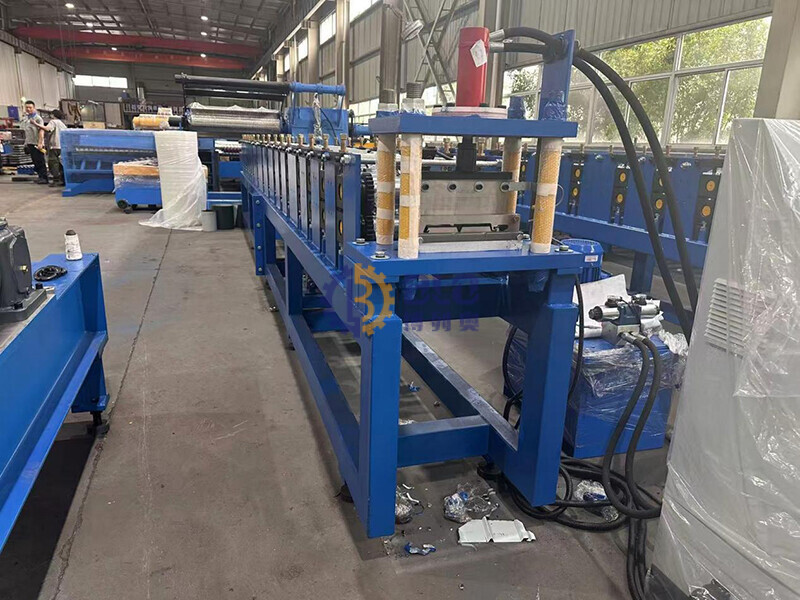

Our Cover Plate Roll Forming Machine integrates multiple processes into one seamless, continuous operation. This turnkey system is designed to handle the specific requirements of producing high-strength, flat or slightly profiled cover plates with precision.

How the SFM System Works:

1. Decoiling & Leveling: A heavy-duty decoiler feeds a steel coil into a precision leveling system. This ensures the raw material is perfectly flat and free of any coilsets or imperfections before forming begins.

2. Pre-Punching & Notching (Optional): A central feature of our system is the integrated punching unit. Before the forming process, the machine can punch holes, create notches, or add custom cut-outs in-line with extreme positional accuracy. This eliminates the need for secondary drilling operations.

3. Precision Roll Forming: The flat strip then passes through the custom-designed roll forming mill. Here, a series of meticulously crafted hardened steel rolls gradually form the edges of the cover plate to the exact required dimensions—whether it's a simple flat bar with finished edges or a specific lip detail.

4. Servo-Driven Flying Cut: Unlike inconsistent thermal cutting, our system uses a high-precision hydraulic or servo flying cut-off saw. It moves synchronously with the formed profile, cutting it to exact length without stopping the production line. This results in clean, burr-free ends with perfect 90-degree angles, every time.

5. Output & Stacking: The finished cover plates are automatically conveyed and stacked, ready for immediate shipment or further assembly.

Key Benefits for Your Business

• Unmatched Precision & Consistency: Achieve identical tolerances and perfect geometry on every single cover plate, ensuring perfect fit-up during assembly and welding.




• Dramatically Increased Output: Produce finished cover plates at speeds of up to 25 meters per minute, far surpassing manual methods and meeting tight project deadlines.




• Significant Material Savings: Utilizing coil stock instead of pre-cut plates minimizes waste. In-line punching further reduces handling and secondary processing scrap.




• Reduced Labor Costs & Safety Risks: The automated process requires minimal operator intervention, reducing labor costs and minimizing worker exposure to heavy lifting and cutting hazards.




• Superior Product Quality: Roll forming creates a stronger, more uniform product without the heat-affected zones and edge imperfections caused by plasma or flame cutting.




• Quick Changeover & Flexibility: Our machines are built with versatility in mind. Quick-change tooling allows for efficient production runs of different sizes and profiles.

Ideal for a Range of Critical Applications

The SFM Cover Plate Roll Forming Machine is perfect for producing reinforcement components for:

• Bridge Construction: Girder and beam reinforcement plates.

• Building Construction: Structural steel connections and reinforcements.

• Shipbuilding & Heavy Equipment: Thick plate fabrications requiring reinforced joints.

• Wind Tower Manufacturing: Flange reinforcements and internal strengthening plates.




Stop letting inefficient production methods constrain your growth and profitability.Embrace the future of structural component manufacturing with SFM  Machinery.

Contact us today for a free consultation and let our experts show you how a custom Cover Plate Roll Forming System can revolutionize your workshop.
