Here's a clear breakdown of how a C/Z quick-change roll forming machine works:

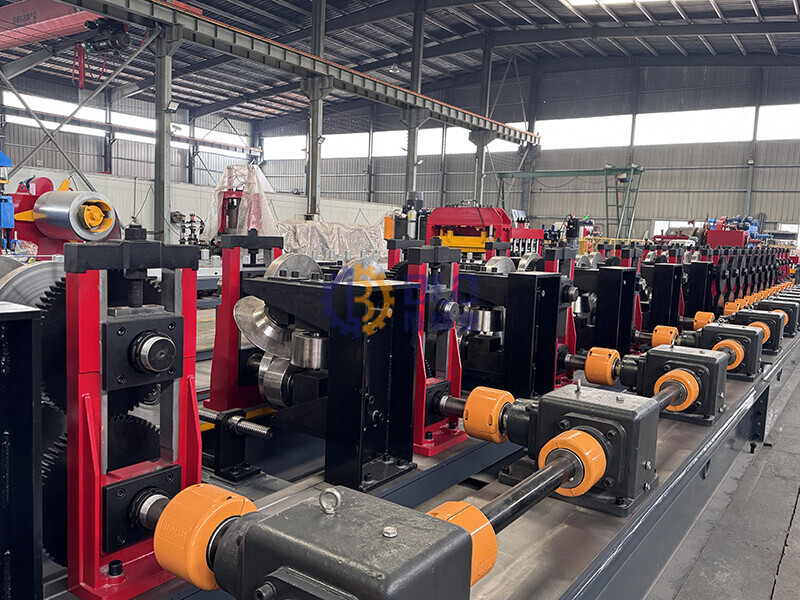

Working Process of C/Z Quick Change Roll Forming Machine

1. Material Feeding

• Steel coil (usually galvanized steel) is loaded onto the hydraulic decoiler.

• The strip passes through a leveling unit to remove coil set and ensure smooth feeding.

2. Automatic C/Z Profile Switching

• The quick-change design allows the machine to switch between C-section and Z-section purlins without replacing rollers.

• The roll forming stands adjust automatically by servo motor or hydraulic control, changing both the roller positions and punch dies.

3. Punching & Notching

• A hydraulic punching unit performs holes or slots as required for purlin connection.

• Punching is done before forming to ensure accuracy.

4. Roll Forming

• The strip passes through a series of forming rollers that gradually bend it into the desired C or Z profile.

• Adjustments for different web heights or flange sizes are controlled via the quick-change system.

5. Cutting to Length

• A flying shear cutter or hydraulic saw cuts the formed purlin to preset lengths without stopping the line.

6. Finished Product Output

• The completed C or Z purlins are automatically stacked or collected for packaging.

Advantages of Quick-Change System

• Change profile type in 5–10 minutes (traditional machines can take 2–3 hours).

• No manual roller changing → reduced labor.

• More flexible production for multiple purlin sizes.

Key Points for Buying a C/Z Quick Change Roll Forming Machine

1. Quick Change Speed :Check how long it takes to switch from C to Z profiles (good machines: ≤10 minutes);Confirm if changeover is fully automatic (motor/hydraulic adjustment) or requires manual assistance.




2. Profile Range & Flexibility:Confirm the web height range (e.g., 80–300 mm) and flange width range;Check if it can produce multiple thicknesses (1.5–3.0 mm) without roller change.




3. Punching System:Hydraulic punching unit should allow customizable hole patterns before forming;Look for servo-controlled punching for better accuracy.




4. Forming Accuracy & Material Handling:Rollers should be made from high-quality Cr12 or GCr15 steel with proper heat treatment;The leveling system must ensure flat feeding for consistent shapes.




5. Cutting System:Flying shear or hydraulic cutting should be burr-free and precise.;Cutting tolerance ideally ±1.5 mm.




6. Control System:PLC brand (Siemens, Mitsubishi, etc.) with touchscreen HMI for easy operation;Memory storage for multiple profiles.




7. Build Quality & Service:Heavy-duty frame to reduce vibration;Availability of spare parts and after-sales service (remote support + on-site training).




8. Safety Features:Emergency stop, safety covers, and overload protection.




Conclusion ：A C/Z Quick Change Roll Forming Machine is a specialized cold roll forming line designed to produce both C-shaped and Z-shaped steel purlins for steel structures, without the need to manually change roller sets.
